AI voice agents that connect to live business data — CRM systems, booking platforms, ERP software, dispatch tools, and patient management systems — require a defined integration architecture that separates data access from data exposure. For mid-market and enterprise businesses in financial services, logistics, healthcare, and real estate, the risk is not that the integration fails to work. The risk is that it works without the right controls in place. Mirlo Systems builds AI voice agents with data integration architecture designed from the ground up: encrypted data channels, scoped API access, field-level PII controls, audit logging on every agent action, and no LLM model data retention on client data. Integration is designed and signed off in the architecture phase before a single line of code is written, and every connection point is tested against agreed security requirements before go-live. Mirlo Systems serves businesses across the UK, Europe, and the Middle East building production AI systems that hold up under operational and compliance scrutiny.
The Integration Problem Nobody Talks About Upfront
An AI voice agent that cannot access live data is not much more than a scripted phone menu.
The power of a production AI voice system comes from its ability to pull real information during a live call and act on it in real time. A caller asks about their shipment. The agent checks the dispatch system and gives a live status. A patient calls to book an appointment. The agent checks the scheduling platform and confirms a slot. A financial services client calls about their application. The agent pulls the account record and gives an accurate update.
This is what makes AI voice agents genuinely useful at scale. It is also what makes them a security problem when the integration is not built correctly.
Every connection between an AI voice agent and a live business system is an access point. And every access point that is not explicitly controlled is a potential exposure point. For businesses in regulated industries or with high-value customer data, that is not a theoretical risk. It is a compliance and reputational liability sitting in the architecture of a system someone is about to put into production.
This post breaks down exactly what production-grade AI voice agent integration looks like, where the security gaps appear, and what needs to be in place before a connected voice system goes live.

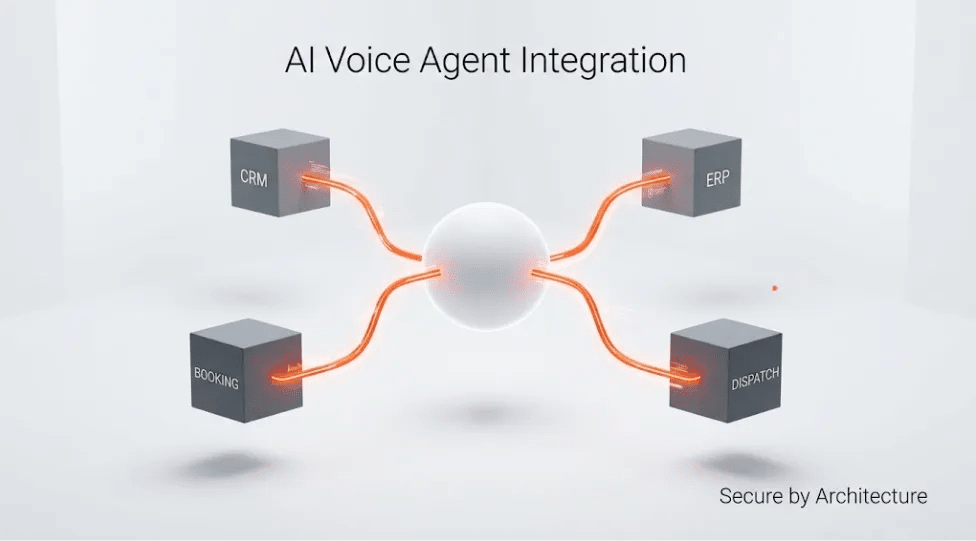

What "Real-Time Integration" Actually Means in a Production Voice System
Before getting into security architecture, it is worth being clear about what integration means in the context of a live AI voice agent.

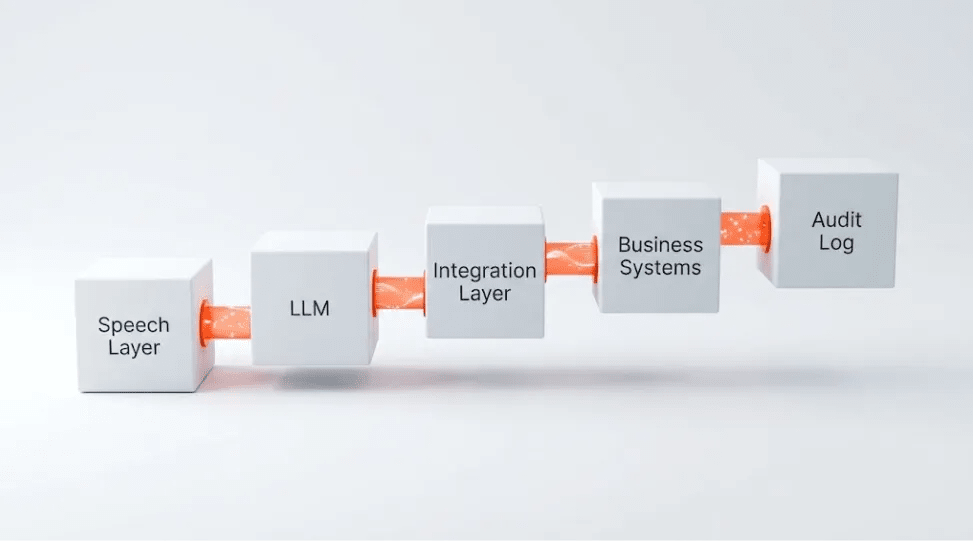

When a caller speaks to an AI voice agent, the conversation triggers a chain of system events in real time. The agent converts speech to text, processes the intent, determines what action or information is needed, queries the relevant system, gets a response, and delivers it back in natural speech. This typically happens within one to two seconds.
That chain involves multiple systems operating simultaneously:
- The speech recognition layer converting audio to structured text
- The language model processing intent and generating a response
- The integration layer querying external business systems via API
- The telephony layer managing the call connection
- The logging layer recording the conversation and agent actions
Each of these layers communicates with the others. Each communication channel carries data. And the data being carried is often sensitive: customer records, account balances, appointment details, shipment locations, or medical history in the case of healthcare.
The integration is not a single connection. It is a network of data flows happening simultaneously in real time. Designing that network securely is not a configuration task. It is an architecture decision.

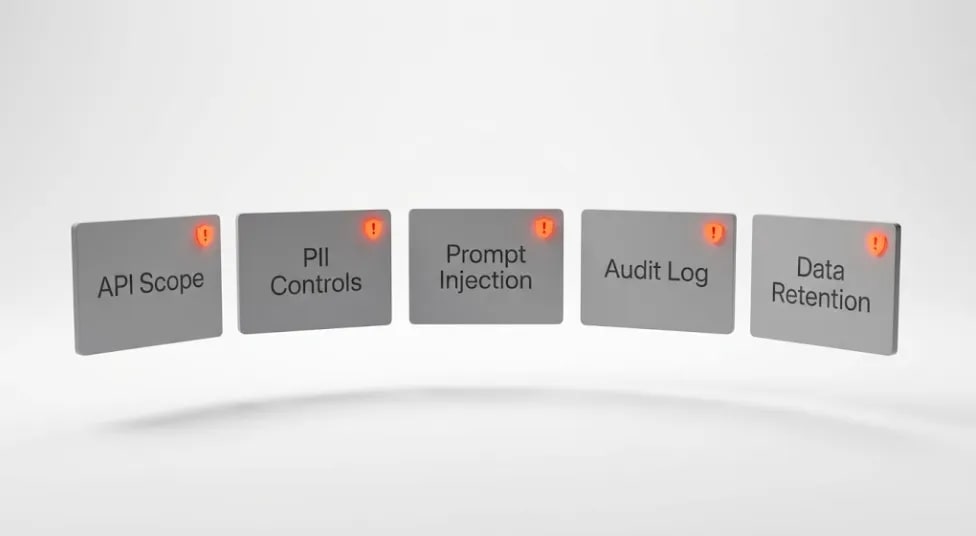

Where the Security Gaps Actually Appear
Most businesses discovering security issues in their AI voice integrations find the same problems. They are predictable, they are structural, and they are almost always the result of integration being treated as a technical task rather than an architectural one.
Gap 1: Overly broad API access
The most common integration mistake is connecting the AI voice agent to a business system using credentials that give the agent access to more data than it needs. A voice agent handling inbound appointment booking does not need read access to billing records. A dispatch status agent does not need write access to customer accounts.
When integration is built quickly, it is almost always built using the most permissive access available because that is the path of least resistance. Every permission that is not explicitly restricted is a data exposure waiting to happen.
The correct approach is scoped API access. The agent is given read or write permission for exactly the data fields it needs to perform its function, and nothing else. This is defined in the architecture phase, not added as an afterthought after the system is already connected.
Gap 2: No field-level PII controls
Business systems contain sensitive data fields that an AI voice agent has no reason to access, process, or transmit. National ID numbers, bank account details, medical record identifiers, and social security numbers may exist in the same database the agent is querying for a customer's name and appointment time.
Without field-level controls, the agent's integration layer has access to all of it. This creates exposure in two ways: the data is being transmitted across the integration layer every time the agent queries the system, and the language model processing that query may log or retain it depending on how the system is configured.
Field-level PII masking and redaction must be applied at the integration layer before data reaches the language model. This is not a default behavior in most AI voice platforms. It has to be explicitly designed and implemented.
Gap 3: Prompt injection from live data fields
This one is less well known outside technical circles, but it is a live threat in production AI voice systems with CRM integrations.
When an AI voice agent queries a CRM and reads back data from a free-text notes field, it is processing content that a human wrote at some point. If that notes field contains content that looks like an instruction to the language model (even accidentally), the model may act on it. This is called prompt injection.
In a production deployment where agents are reading from live CRM records, this means the content of customer notes fields is a potential attack vector. A well-designed integration architecture sanitizes free-text inputs before they reach the language model, and gates tool calls so the agent cannot take actions outside its authorized scope regardless of what instructions appear in the data it reads.
Gap 4: No audit trail on agent actions
Knowing what the AI voice agent said is not the same as knowing what it did. In a system where the agent is querying live data and triggering actions (updating records, confirming bookings, sending notifications), the audit requirement is not just a transcript of the conversation. It is a log of every system action the agent took, timestamped, with the data state before and after.
Without this, there is no way to investigate a complaint, respond to a compliance inquiry, or demonstrate to a regulator that the agent behaved within its authorized scope during a specific interaction. This is one of the most common gaps discovered during compliance reviews of live AI voice systems.
Gap 5: LLM model data retention
Many AI voice platforms use third-party language models as part of their stack. Some of those models, depending on the provider and the configuration, retain conversation data for training or improvement purposes. For businesses handling personal data, financial information, or health records, this creates a data processing obligation that may not have been agreed with the customer and may not be compliant with applicable data protection regulations.
This is a contractual and architectural issue. It needs to be resolved at the design phase, before integration is built. Not discovered after go-live when a data protection review surfaces it.

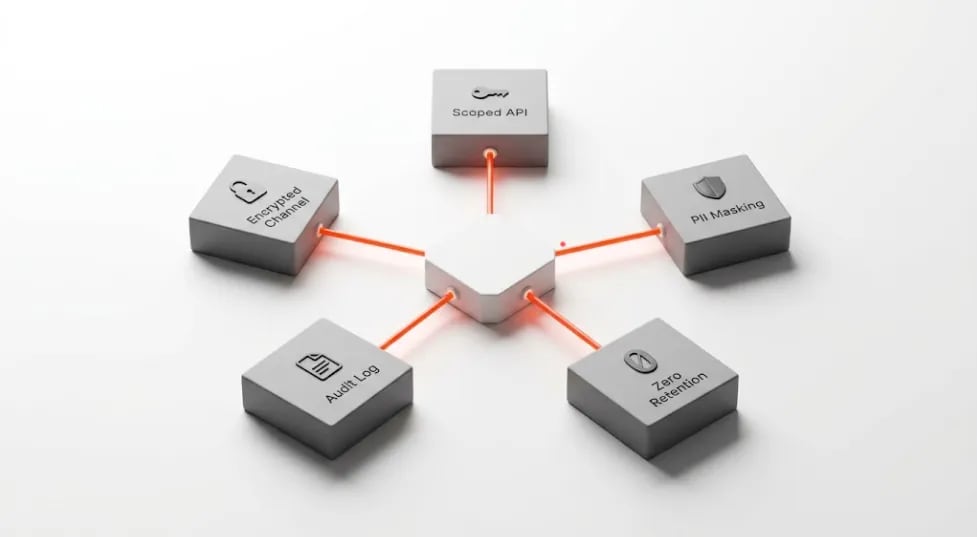

What a Secure Integration Architecture Looks Like
A production AI voice system that connects to live business data without creating security gaps is not built by connecting the agent to existing systems and hoping for the best. It is designed with the following components in place from the start.
Encrypted data channels
All data moving between the AI voice agent and connected business systems is encrypted in transit using AES-256 or equivalent. This applies to every API call, every webhook, and every data response flowing through the integration layer. Encryption is not optional and it is not platform-dependent. It is a baseline requirement.
Scoped API credentials
Integration credentials are created with the minimum permissions required for the agent to perform its function. Every access right is explicitly defined. Nothing is inherited from a broader admin credential. This is documented and signed off before the build starts, not after.
Field-level PII controls
Sensitive data fields in connected systems are identified during the architecture phase. Masking or redaction rules are applied at the integration layer so that PII not required for the agent's function never reaches the language model processing layer. This is tested as part of the staging build validation, not assumed.
Input sanitization and tool-call gating
Free-text data fields from CRM and other connected systems are sanitized before being passed to the language model. Tool-call gating is implemented so the agent can only trigger actions within its explicitly defined scope, regardless of what instructions may appear in the data it processes.
Tamper-evident audit logging
Every agent action (every query, every record access, every triggered workflow) is logged with a timestamp, the data state at the time, and the agent decision that triggered the action. Logs are tamper-evident and exportable. This is not a platform feature to be enabled post-launch. It is an architecture requirement built in from day one.
Zero LLM model data retention
The language model configuration is explicitly set to zero data retention on client data. No conversation content, no queried record data, no customer information is retained by the model provider for training or any other purpose. This is confirmed contractually and verified in the staging environment before go-live.
Why Integration Security Requires an Architecture Phase, Not a Configuration Task
The reason most AI voice integrations have security gaps is not that the builders were careless. It is that integration security is treated as a configuration decision made during build, not an architecture decision made before build.
When integration design happens during build, the decisions get made under time pressure, with the primary goal of making the connection work. Scope, access controls, PII handling, and audit requirements become afterthoughts. They get added later if someone asks about them.
When integration design happens in an architecture phase, every decision is deliberate. The data flows are mapped. The access requirements are defined. The PII controls are specified. The audit requirements are documented. All of it is agreed and signed off before a single API call is made.
This is why Mirlo Systems runs a dedicated architecture and design phase on every engagement before the build begins. The integration map is one of the core deliverables of that phase. Every data connection is documented, every access scope is defined, every security control is specified. Nothing gets built until the architecture is agreed.
This is also why retrofitting security controls onto an existing AI voice integration is expensive and unreliable. You are trying to add structural reinforcement to something that was not designed to hold it.
What This Means for Businesses Evaluating AI Voice Partners
If you are evaluating an AI voice partner for a deployment that involves connecting to live business data, the integration architecture conversation is one of the most important conversations you can have before the engagement begins.
The questions that reveal whether a partner is building for production or building for a demo:
- How do you define API access scope for the integration?
- How do you handle PII fields in connected systems?
- What is your approach to prompt injection risk in CRM-connected deployments?
- What does your audit logging cover, and in what format are logs available?
- What is the LLM data retention policy for customer data processed during live calls?
- How is the integration architecture documented and signed off before build starts?
A partner who answers these questions clearly, without hedging, and with reference to how their delivery process handles each one, is a partner who has built production AI voice systems before.
A partner who treats these as edge cases or post-launch considerations is a partner whose integration will have gaps.
A Note on What Mirlo Systems Builds
Mirlo Systems builds production AI voice systems for businesses in financial services, logistics, healthcare, real estate, professional services, and enterprise operations. Every engagement runs through a six-phase delivery model. Integration architecture is designed and signed off in Phase 2, before Phase 3 build begins. Security controls, PII handling, audit logging, and data retention are not configuration decisions made during build. They are architecture decisions made before the first line of code is written.
AES-256 encryption is standard across all systems. No LLM model data retention on client data. Sub-4 hour SLA on support issues after go-live. Every system is 100% staging-tested before production.
Mirlo Systems operates across the world, with dedicated coverage across the UK, Europe, and the Middle East.
Common Questions
Why is real-time data integration a security risk in AI voice systems?
Every connection between an AI voice agent and a live business system is a data access point. If that access point is not explicitly scoped, encrypted, and controlled, it becomes a potential exposure point for customer records, financial data, health information, or other sensitive business data. The risk compounds when integration is built without a defined architecture - overly broad API credentials, unmasked PII fields, and absent audit logging are the most common gaps that create real compliance and security exposure in production deployments.
What is prompt injection and why does it matter for CRM-connected voice agents?
Prompt injection is when content in a connected data source (such as a CRM notes field) contains text that the language model interprets as an instruction, causing the agent to behave outside its authorized scope. In a voice agent connected to live CRM data, every free-text field the agent reads is a potential injection point. Preventing it requires input sanitization at the integration layer and tool-call gating that restricts the agent to its authorized actions regardless of what instructions appear in the data it processes.
What does scoped API access mean and why is it important?
Scoped API access means the AI voice agent is given credentials that allow it to read or write only the specific data fields it needs to perform its function. Nothing more. A booking agent gets access to availability and scheduling data. A status agent gets access to shipment or account status fields. It does not have access to billing records, medical history, or other data that is not relevant to its task. Scoped access limits the data surface exposed through the integration and reduces the impact if the integration is ever compromised.
How should audit logging work in an AI voice system connected to live data?
Audit logging for a production AI voice system needs to capture more than a call transcript. It should log every action the agent took (every system query, every record accessed, every workflow triggered) with a timestamp, the data state at the time of the action, and the agent decision that caused it. Logs should be tamper-evident, exportable to your existing security infrastructure, and retained for a period that meets your applicable compliance requirements. A system whose audit capability is limited to a transcript view in a vendor dashboard is not audit-ready for a compliance review.
What should businesses ask an AI voice partner about data retention before signing an engagement?
The core question is whether the language model used in the system retains any customer data processed during live calls, whether for training, improvement, or any other purpose. This should be confirmed contractually in a data processing agreement before build begins. For businesses in regulated industries, the specific categories of data processed (PII, financial data, health records) should be documented, and the retention policy for each should be explicit. Zero model data retention on client data is the standard Mirlo Systems applies to every engagement.
